IC756 ( all series ), IC7400, IC746, IC7000

(Personal Computer not required)

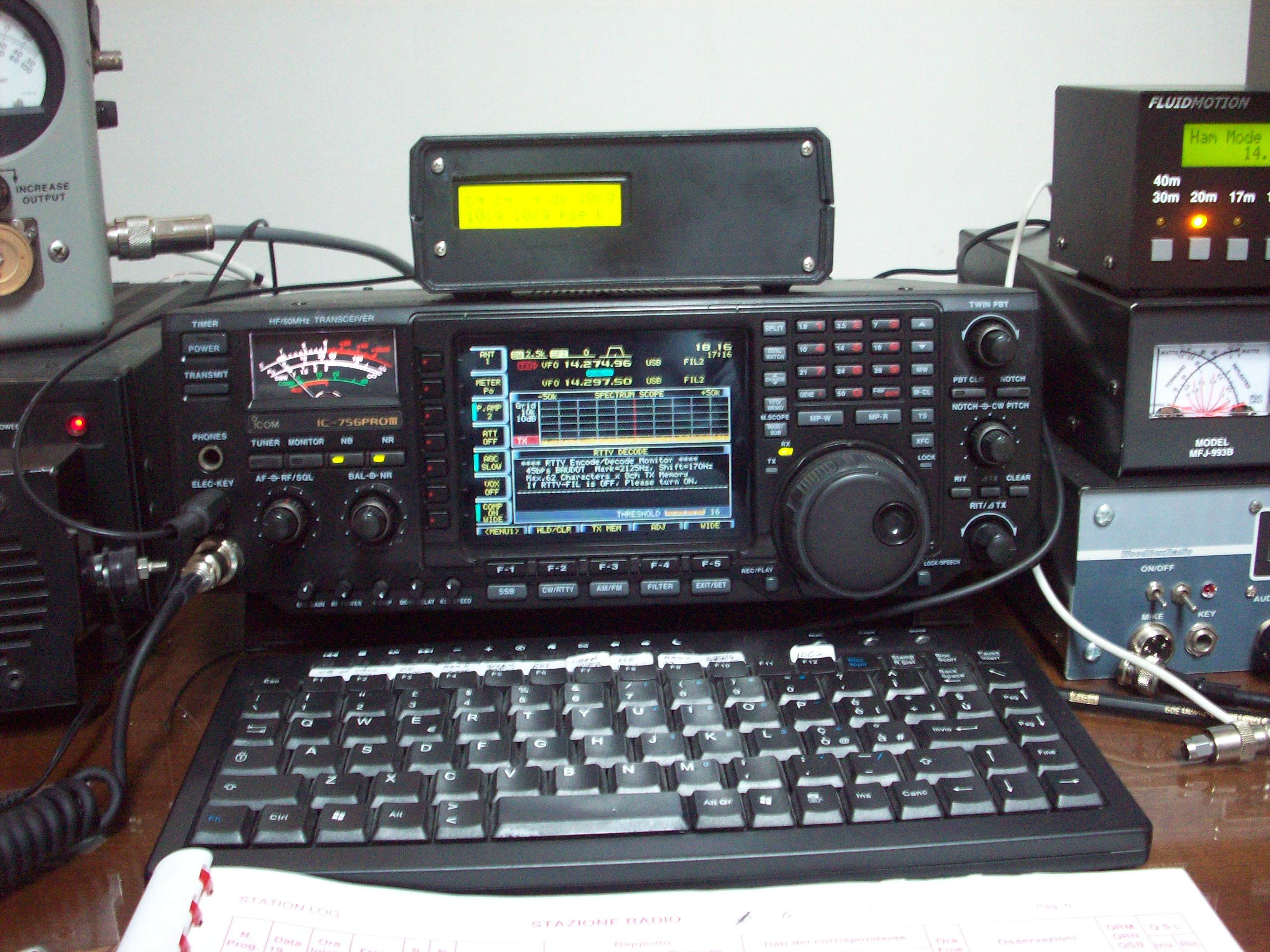

IC-756, IC-7400, IC746 and IC-7000 have a built in RTTY decoder but RTTY transmission is very hard because Keyboard isn't provided.

This interface can be used to add a standard PC Keyboard to some ICOM TRX.

Also CW transmission can be performed so, for this use, can be used as CW keyboard with all commercial or home-made TRX .

Ideal for portable operation because PC isn't required

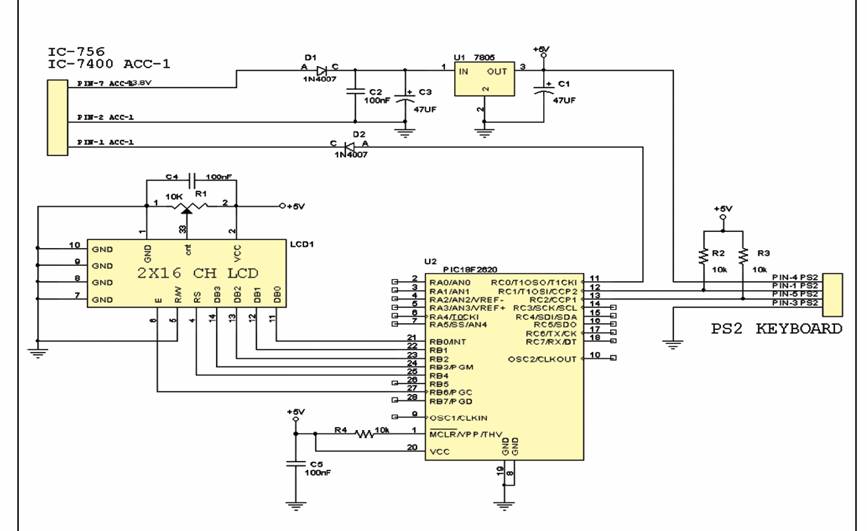

Minimum schematic for RTTY

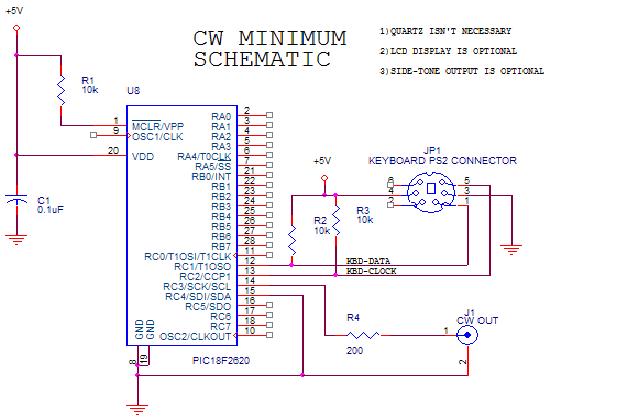

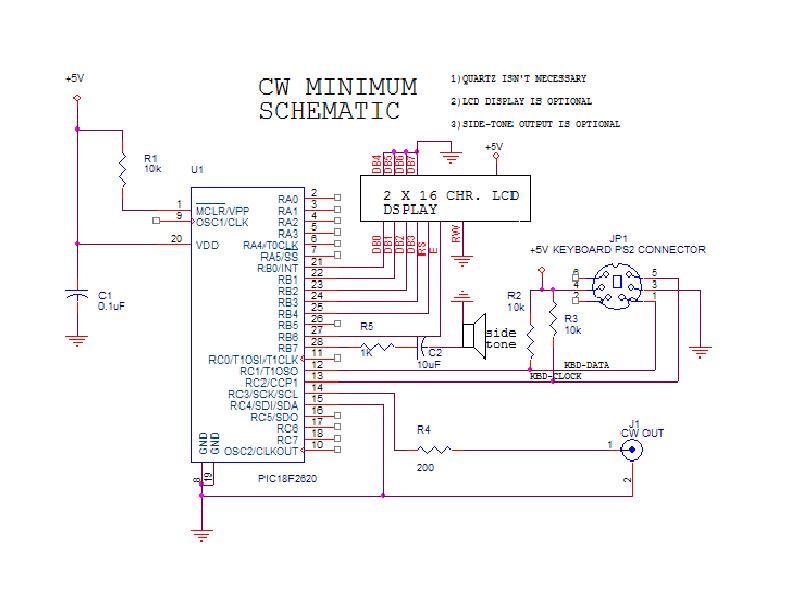

see also cw minimum sch or all features sch .


minimum schematic is very simple so anyone can build interface yourself


ASk for free Software (you can download here or ask for programmed PIC via Mail)

load code here code.zip


PDF manual  with detailed description


For any information ask to


Progetto pubblicato su Radiokit n 2-2008





see YouTube CW demo

see YouTube RTTY demo
